Description
Garrett SuperWand Handheld Metal Detector in UAE
The Garrett SuperWand is a professional handheld metal detector designed for fast and accurate security screening. Its exclusive 360-degree detection field provides uniform sensitivity around the detector’s scanning blade and tip, helping security personnel locate concealed weapons and other metallic objects efficiently.
Available in Dubai and throughout the UAE, the Garrett SuperWand is suitable for airports, government buildings, hotels, shopping malls, schools, event venues, warehouses and other locations requiring controlled-access security.
The detector combines high metal-detection sensitivity, automatic operation, dual alarm modes and an ergonomic design. It is an excellent solution for security teams that need reliable performance without complicated adjustments or extensive operator training.
Complete 360-Degree Metal Detection
Unlike handheld detectors that rely mainly on a flat scanning surface, the Garrett SuperWand creates a 360-degree detection field around its elongated scanning area.
This uniform detection coverage allows the operator to scan using different sides of the wand while maintaining consistent sensitivity. The detector’s tip also supports precise pinpointing of the detected metal object.
The Garrett SuperWand can detect:
- Ferrous metals
- Non-ferrous metals
- Stainless steel
- Concealed metallic weapons
- Pistols and firearm components
- Knives and sharp metallic objects
- Razor blades and box cutters
- Metallic contraband
- Small concealed metal objects
- Mobile phones and electronic devices
- Other conductive metallic items
Detection range varies according to the target’s size, conductivity, orientation and distance from the scanning surface.
Key Features of the Garrett SuperWand
360° Detection Field
The detector provides complete detection coverage around its scanning blade and tip. This helps reduce the possibility of an operator missing a target because the detector is held at a slightly different angle.
Pinpointing Tip
After detecting metal, the operator can use the tip of the SuperWand to locate the object’s approximate position more precisely. This helps make secondary inspections faster and less intrusive.
Elongated 22.2 cm Scan Surface
The 8.75-inch scanning area allows security personnel to cover a larger section of the body with every movement. This supports efficient head-to-foot screening at busy security checkpoints.
Audible and Silent Vibration Modes
The Garrett SuperWand offers two detection alert options:
- Audible mode: Produces a clear alarm when metal is detected.
- Silent vibration mode: The handle vibrates and the red LED illuminates without an audible alarm.
Silent vibration is particularly useful in noisy locations or situations requiring discreet security screening.
Three-Colour LED Indicators
The SuperWand uses simple colour-coded indicators:
- Green LED: Detector switched on and ready
- Amber LED: Low battery warning
- Red LED: Metal detection alarm
These indicators allow security personnel to confirm operating status quickly.
Automatic Self-Calibration
The SuperWand uses digital circuitry with automatic retuning. It is designed for immediate operation without routine sensitivity adjustments or periodic calibration by the operator.
This makes the detector suitable for security teams with multiple operators and busy shift rotations.
Ergonomic Handgrip
The comfortable handgrip is designed to fit different hand sizes and support repeated head-to-foot inspections. Its balanced shape helps security officers maintain control during long screening shifts.
Durable High-Impact Construction
The Garrett SuperWand features rugged construction with a structurally isolated detection coil for additional impact absorption. According to Garrett’s product literature, the detector exceeds the applicable MIL-STD-810G drop-test procedure.
This durable design makes it suitable for demanding professional security operations.
Long Battery Operation
One standard 9V battery provides up to approximately 80 hours of normal operation. The battery can be replaced without specialized tools.
An optional Garrett rechargeable NiMH battery kit is also available for organizations operating several security checkpoints.
Why Choose the Garrett SuperWand?
The Garrett SuperWand offers several advantages for professional security screening:
- Uniform 360-degree detection coverage
- Tip pinpointing for accurate target location
- Detection of ferrous, non-ferrous and stainless-steel objects
- Audible and silent vibration alarm modes
- Automatic operation with no routine adjustment
- Large scanning area for faster inspections
- Simple three-position control switch
- Clear power, battery and alarm indicators
- Comfortable ergonomic grip
- Durable, high-impact construction
- Up to 80 hours of battery life
- Manufactured in the USA
Suitable Applications in industries :
The Garrett SuperWand handheld metal detector is suitable for security screening at:
- Airports and aviation facilities
- Government and municipal buildings
- Police and correctional facilities
- Embassies and consulates
- Hotels and resorts
- Shopping malls
- Schools and universities
- Hospitals and medical facilities
- Banks and financial institutions
- Corporate offices
- Warehouses and logistics centres
- Construction and industrial sites
- Concerts and festivals
- Exhibitions and conferences
- Stadiums and sporting events
- Nightclubs and entertainment venues
- Private security checkpoints

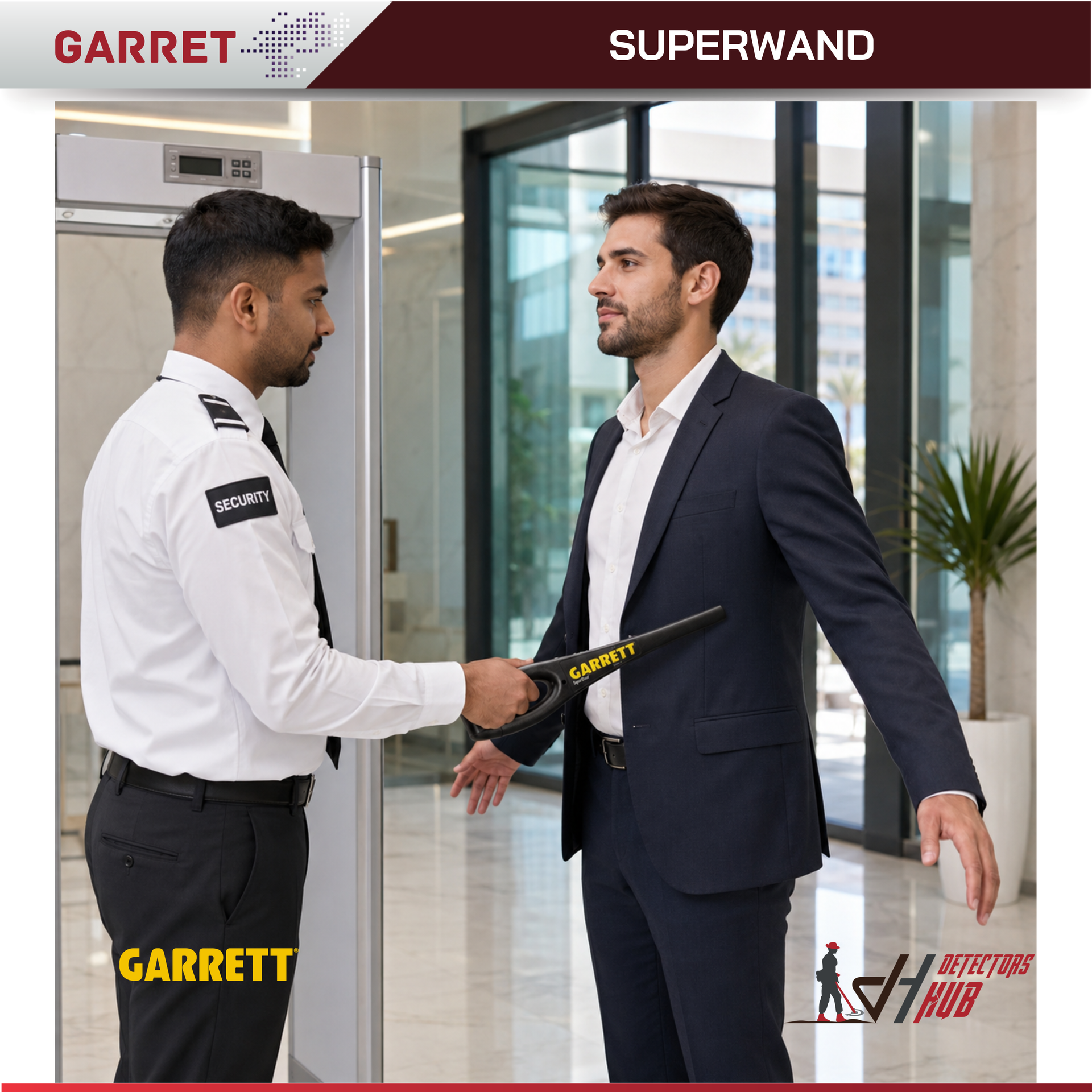

It can also be used for targeted secondary screening after a person activates a walk-through metal detector.
Garrett SuperWand Technical Specifications
| Specification | Details |
|---|---|
| Product name | Garrett SuperWand |
| Product type | Handheld security metal detector |
| Part number | 1165800 |
| Detection field | 360° around scanning blade and tip |
| Scan surface | 8.75 inches / 22.2 cm |
| Detection capability | Ferrous, non-ferrous and stainless-steel objects |
| Operating frequency | Approximately 95 kHz |
| Audio frequency | Approximately 2 kHz |
| Tuning | Automatic |
| Alarm modes | Audible alarm, silent vibration and red LED |
| Status indicators | Green power, amber low battery and red alarm LEDs |
| Controls | Three-position audible/off/vibration switch |
| Length | 48.3 cm |
| Width | 8.3 cm |
| Thickness | 3.2 cm |
| Weight | Approximately 527 g |
| Battery | One standard 9V battery |
| Battery operation | Up to approximately 80 hours |
| Rechargeable option | Optional NiMH rechargeable battery kit |
| Operating temperature | -37°C to +70°C |
| Construction | Rugged, high-impact housing |
| Country of manufacture | USA |
Why Professionals Choose DetectorsHub
DetectorsHub is a trusted supplier of professional metal detectors, gold detectors, security inspection equipment, and handheld XRF analyzers. We operate a physical showroom in Dubai, United Arab Emirates, where customers can view selected products, receive expert advice, and benefit from professional in-store training on eligible equipment.
Our team supports customers before and after their purchase with product consultation, technical guidance, and after-sales assistance. Whether you are a treasure hunter, gold miners, geologist, security professional, jeweler, refinery, contractor, or industrial inspector, we are committed to helping you select the right equipment for your needs.
- ✔ Physical showroom in Osha plaza 2, Shop no: 5, Deira Waterfront ,Dubai, UAE
- ✔ Professional in-store training on selected products
- ✔ Expert product consultation
- ✔ Genuine products from leading global manufacturers
- ✔ After-sales assistance
- ✔ Serving customers across the UAE and internationally
Additional Information
Reviews
Frequently Asked Questions (FAQs)
Find answers to the most common questions about this product.
What is the Garrett SuperWand Hand-Held Metal Detector used for? +
The Garrett SuperWand is a professional hand-held metal detector designed for secondary security screening. It is widely used at airports, schools, government buildings, stadiums, correctional facilities, hospitals, corporate offices, and public events to quickly detect concealed metal objects after a walk-through metal detector alarm or during manual security inspections.
What types of metal objects can the Garrett SuperWand detect? +
The Garrett SuperWand detects both ferrous and non-ferrous metals, including:
Firearms
Knives
Razor blades
Handcuffs
Metallic tools
Keys
Electronic devices
Other concealed metallic objects
Its high sensitivity helps security personnel locate potential threats quickly and accurately
What makes the Garrett SuperWand different from other hand-held metal detectors? +
One of the SuperWand's biggest advantages is its 360° detection field, which provides uniform sensitivity around the entire scanning surface and the tip of the detector. This allows operators to detect metal from multiple angles without constantly rotating the device, resulting in faster and more efficient security screening.
Is the Garrett SuperWand easy to operate? +
Yes. The Garrett SuperWand is designed for simple operation with a single power switch and automatic self-calibration. Operators do not need to manually adjust sensitivity before use, allowing for quick deployment in busy security environments.
Where can the Garrett SuperWand be used? +
The Garrett SuperWand is suitable for a wide range of security applications, including:
Airports
Government facilities
Schools and universities
Hospitals
Stadiums
Concerts and public events
Corporate offices
Hotels
Correctional facilities
Industrial sites
Why buy the Garrett SuperWand from DetectorsHub? +
When you purchase the Garrett SuperWand from DetectorsHub, you receive:
Genuine Garrett products
Professional product consultation
In-store operator training
Technical support before and after purchase
Manufacturer warranty assistance
Worldwide shipping
What does 360-degree detection mean? +
The detector can sense metal around the full circumference of its scanning blade, including the tip. This provides more consistent detection even when the wand is held at different angles.
