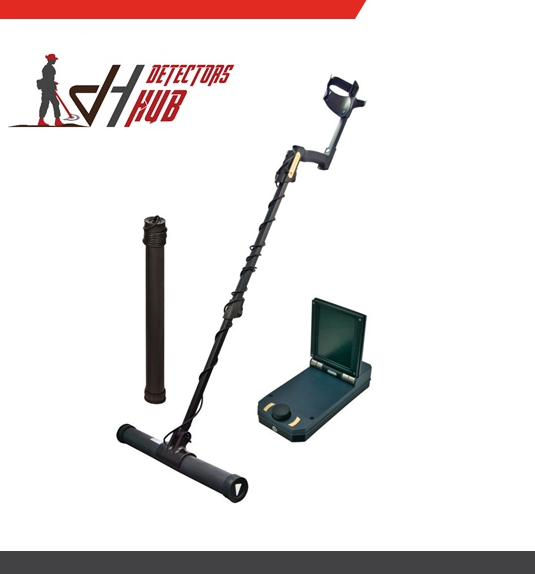

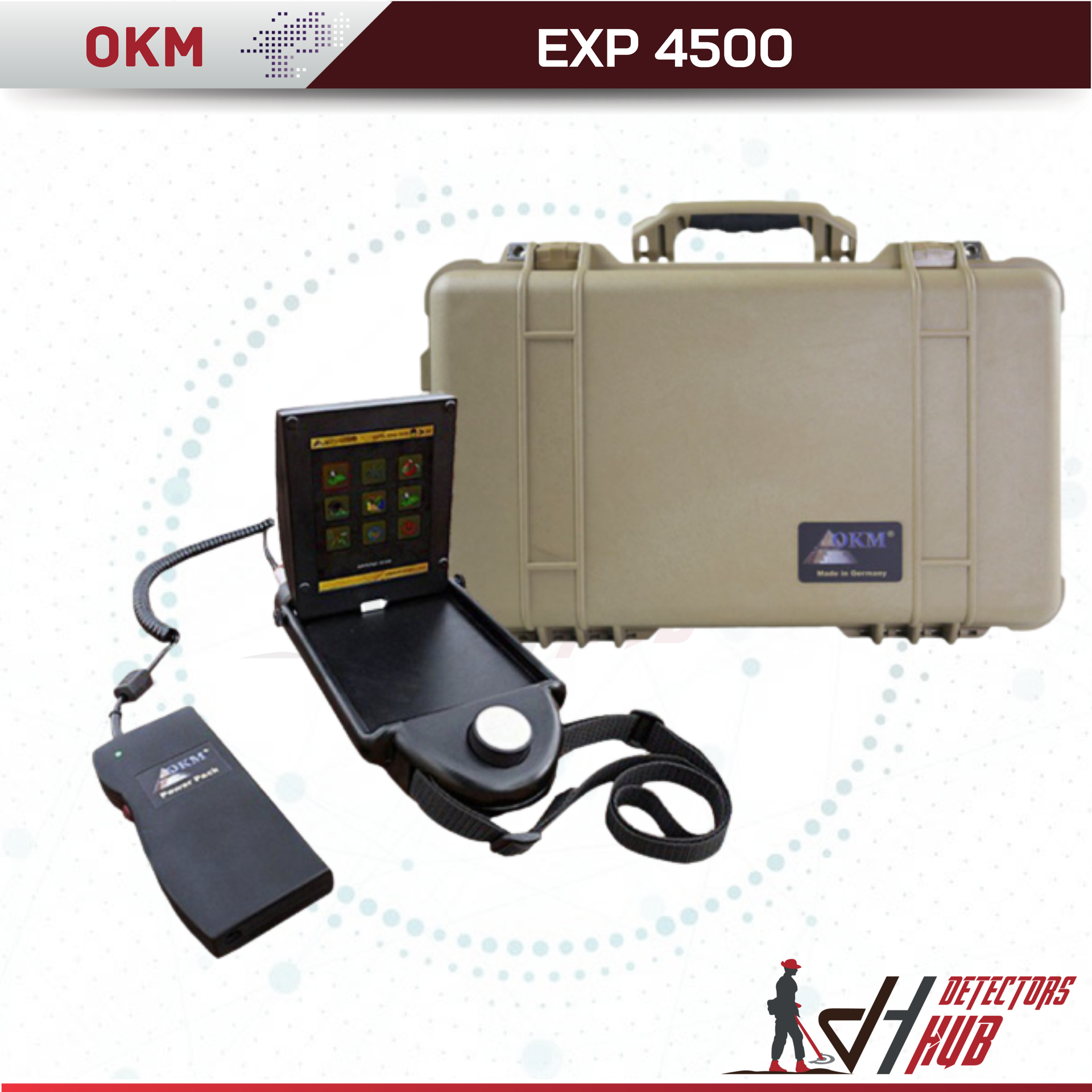

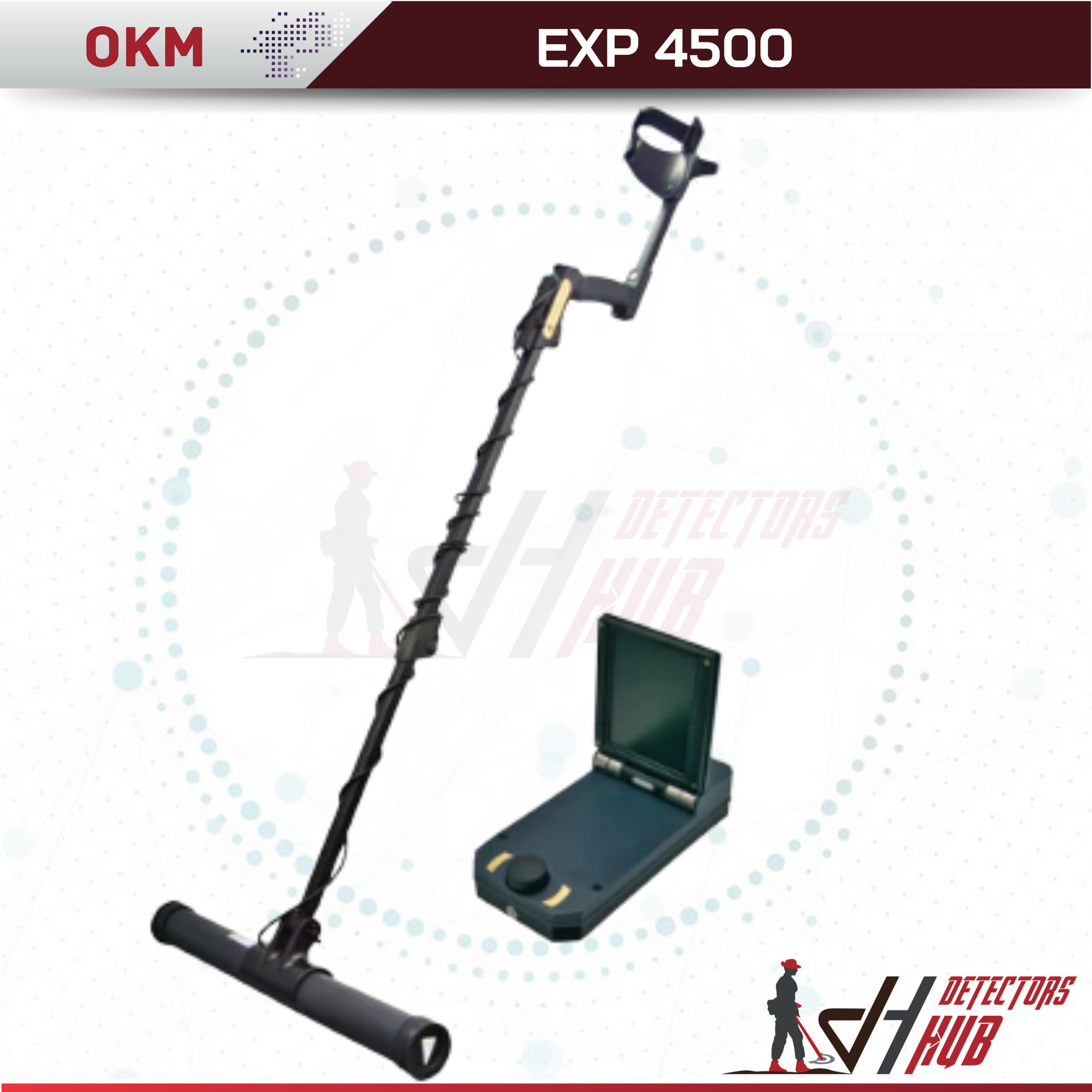

OKM eXp 4500 Professional Plus

OKM's detector for multifunctional subsurface detecting - complete with all features

Customers have discovered artifacts up to 25 meters (82 feet) deep. Use cases include treasure hunting, natural gold prospecting, and tunnel detection.

Ground Scan, Magnetometer, Pinpointer, Mineral Scan, Tunnel Scan are the different modes of operation.

Treasure chests, cavities, and tunnels are all detectable objects.

DESCRIPTION

 3D Treasure Hunting and Gold Prospection Ground Scanner

Ground scanners like the eXp 4500 can detect buried treasure at depths that common metal detectors cannot reach from treasure hunters at all levels – beginners, experienced and professional use. The multifunctional treasure detector can find old relics, lost treasures and minerals made of natural gold.

eXp 4500 Special Features at a Glance

• non-intrusive real-time ground surveying before excavating
• quick and easy setup and operation
• exchangeable probes for various purposes
• color-coded surveys
• immediate on-site interpretation of target area
• measured values show extreme depth of survey
• measured values show location of targets within surveyed area
• highly sensitive and accurate metal detection

Exchangeable sample Multi-Purpose Detector

The eXp 4500 High-performance sensor is suited as a special purpose and functional interchangeable sensor. The lightweight and usable treasure detector is therefore the perfect equipment for treasure hunters seeking different treasures.

The eXp 4500 Pro plus includes:

Super Sensor for scans, pinpointing and mineral detection of high-resolution soil.

GPR-Antenna (25cm, 50cm, 75cm, 100cm)

Tunnel Sensor

Facilities for all hunting levels of treasure

Archaeologists, gold seekers, and treasure hunters may use the treasure detector to:

• carry out 3D archaeological surveys as well as metal detection
• Visualize finds and underground structures in 3D photographs, including size and depth, to pinpoint the exact location of buried jewels and artifacts.
• Detect gold, silver, bronze, and other precious items.
• ancient items, lost jewels, coins, treasure dumps, and pirate chests can all be discovered.
• Find gold minerals and natural gold in caves, voids, and caverns.

eXp 4500 Scan Modes

Treasure finds and discoveries come in all shapes and sizes, and are made of a variety of materials. As a result, treasure hunters who aren't focused on a specific type of find will need a range of operating modes and locating methods in order to locate all types of hidden treasures at different depths beneath the sea.

The eXp 4500 Professional Plus ground scanner has the following scan modes: The eXp 4500 Pro ground scanner offers the following modes of scanning:

• Ground Scan is ideal for treasure hunters and archaeologists searching for artifacts, treasures, and historical artifacts underneath the ground.
• Mineral Scan: helps gold prospectors and gold seekers panning for natural gold minerals to be more competitive.
• Treasure hunters may use a pinpointer to help them find the correct location of objects that have been detected.

• Magnetometer: aids in the detection of ferrous metals such as iron and steel.
• Tunnel Scan: used to locate underwater voids, caves, cavities, and hollow spaces.

Treasure Hunting in the Dark with a Ground Scanner

Treasure hunters may use the mountable flashlight to look for secret objects and secrets in the dark, as well as underground caves, bunkers, and treasure chambers, with the eXp 4500 3D ground scanner. In addition, in the blinding light of the torch, obstacles in the scan area become apparent. This ensures that ground scans are carried out precisely and accurately, and that accurate measurement data is generated.

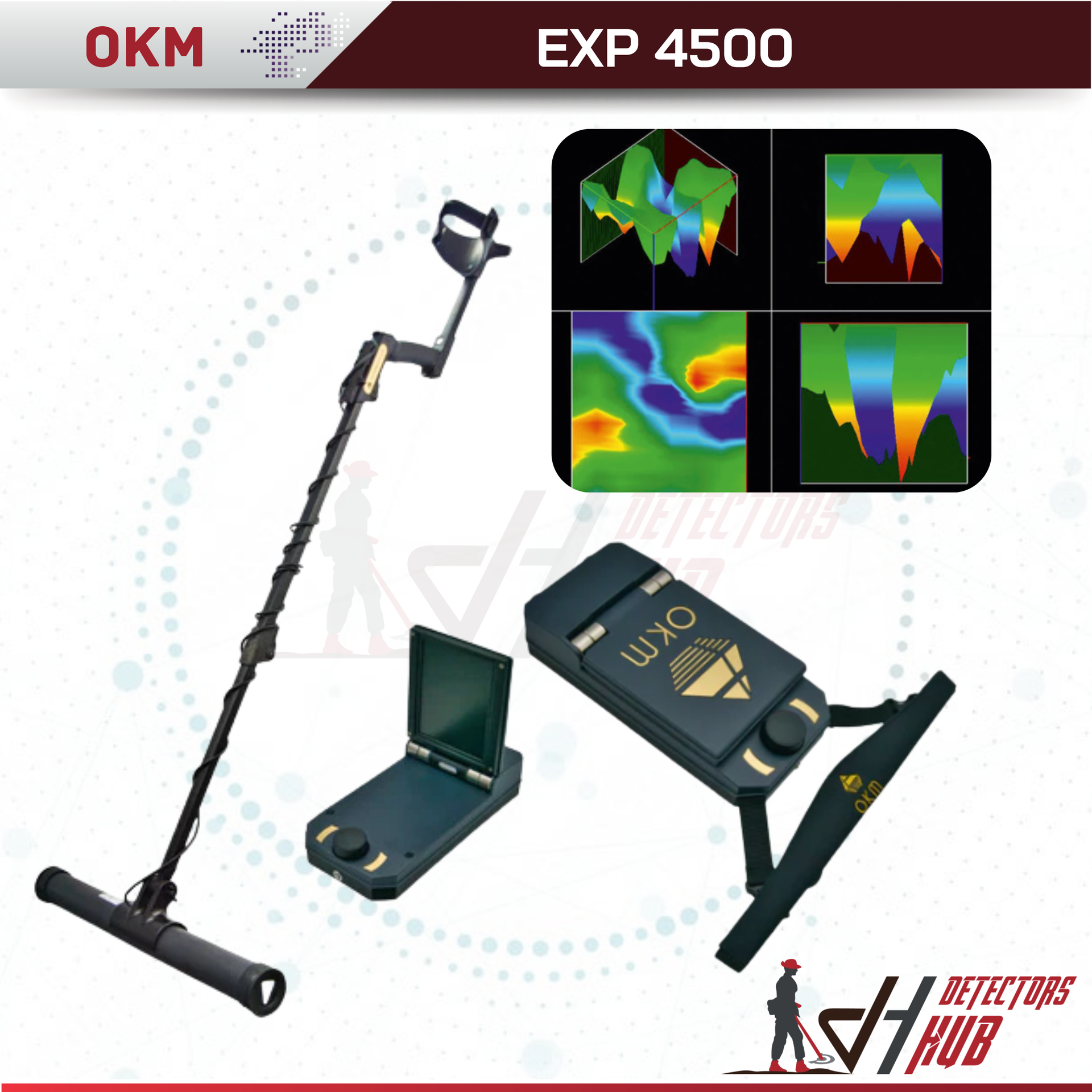

Visualization of Treasure Finds and Discoveries

The eXp 4500's sensors are directly connected to the control unit, which displays the measurement data on the full color screen right away. These files can be saved in the device's internal memory and transferred to a computer.

On a screen, the advanced software Visualizer 3D allows all stored data to be evaluated and compared. The user can also determine the depth, height, and location of structures and objects identified.

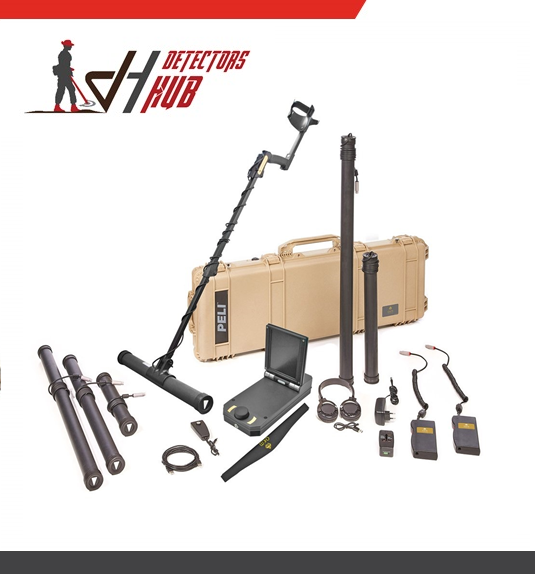

Delivery Scope

1x       Control unit

1x       Super Sensor

1x       GPR Antenna (100 cm)

1x       GPR Antenna (25 cm)

1x       GPR Antenna (50 cm)

1x       GPR Antenna (75 cm)

1x       Tunnel Sensor

1x       Telescopic rod with an attachable flashlight

1x       Software Visualizer 3D Studio Professional Edition with data cable

1x       Waterproof and shock resistant Pelican case

1x       Bluetooth headphones

1x       Joystick

2x       Power Pack with charger and travel adapter

1x       Quick Start Guide

Specifications

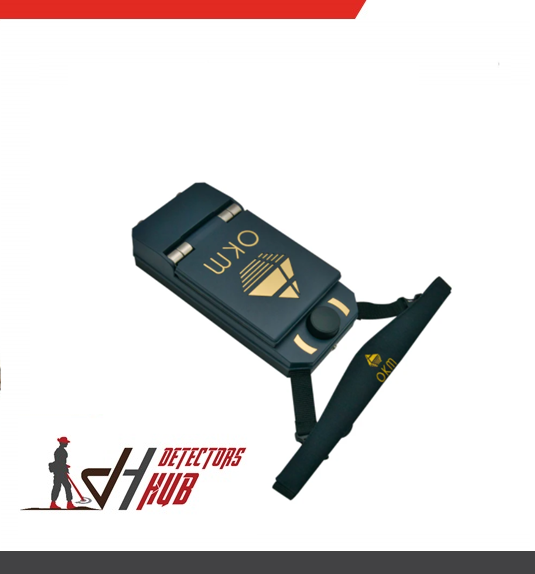

Control unit

Dimensions (H x W x D): 70 x 140 x 300 mm

Weight: approx. 1530 g

Input voltage: 12 – 14.4 V DC, 22 W max

Display: 1000 mcd Background lighting, 6.5" Diagonal, 640 x 480 Pixel TFT, Color, Anti-Glare

Processor: AMD-GX, Dual-Core 1 GHz Processor, GPU 300 MHz

Working memory (RAM): 2 GB

Data memory: 8 GB

Operating temperature: 0°C – 40°C

Storage temperature: –20°C – 60°C

Waterproof: No

Operating time: approx. 3 hours (full charged Power Pack, 25°C)

Air humidity: 5% – 75%

Protection Type: IP 40

Feedback: acoustic, visual

Data transmission

Technology: USB

Maximum Transfer Rate: 115200 Baud

Computer minimum requirements

CD-ROM drive: minimum 4x

Interface (Data transmission): USB

Free disk space: minimum 50 MB

Working memory (RAM): minimum 256 MB

Graphic card: minimum 128 MB, OpenGL-compatible

Processor: Minimum 1.2 GHz

Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation
