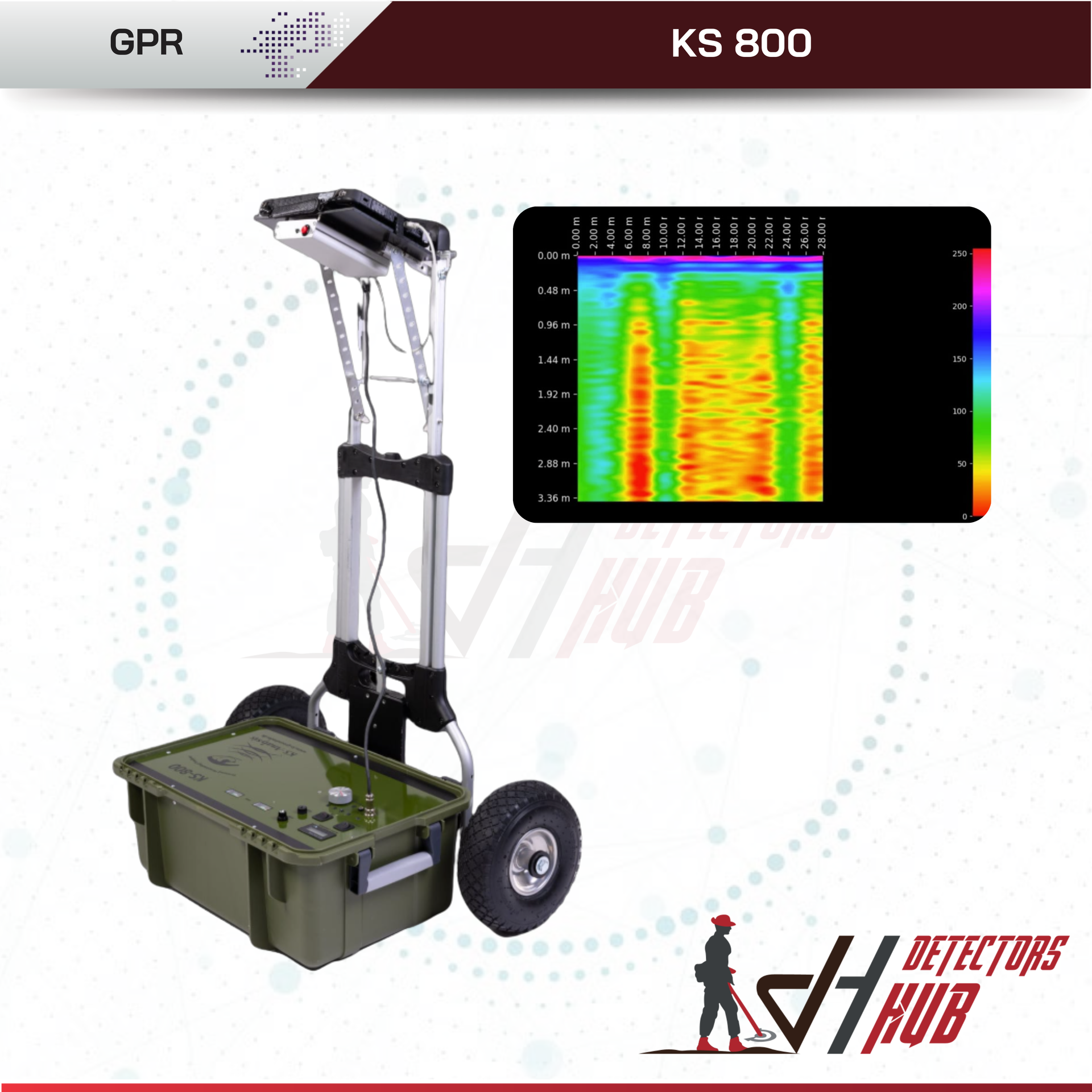

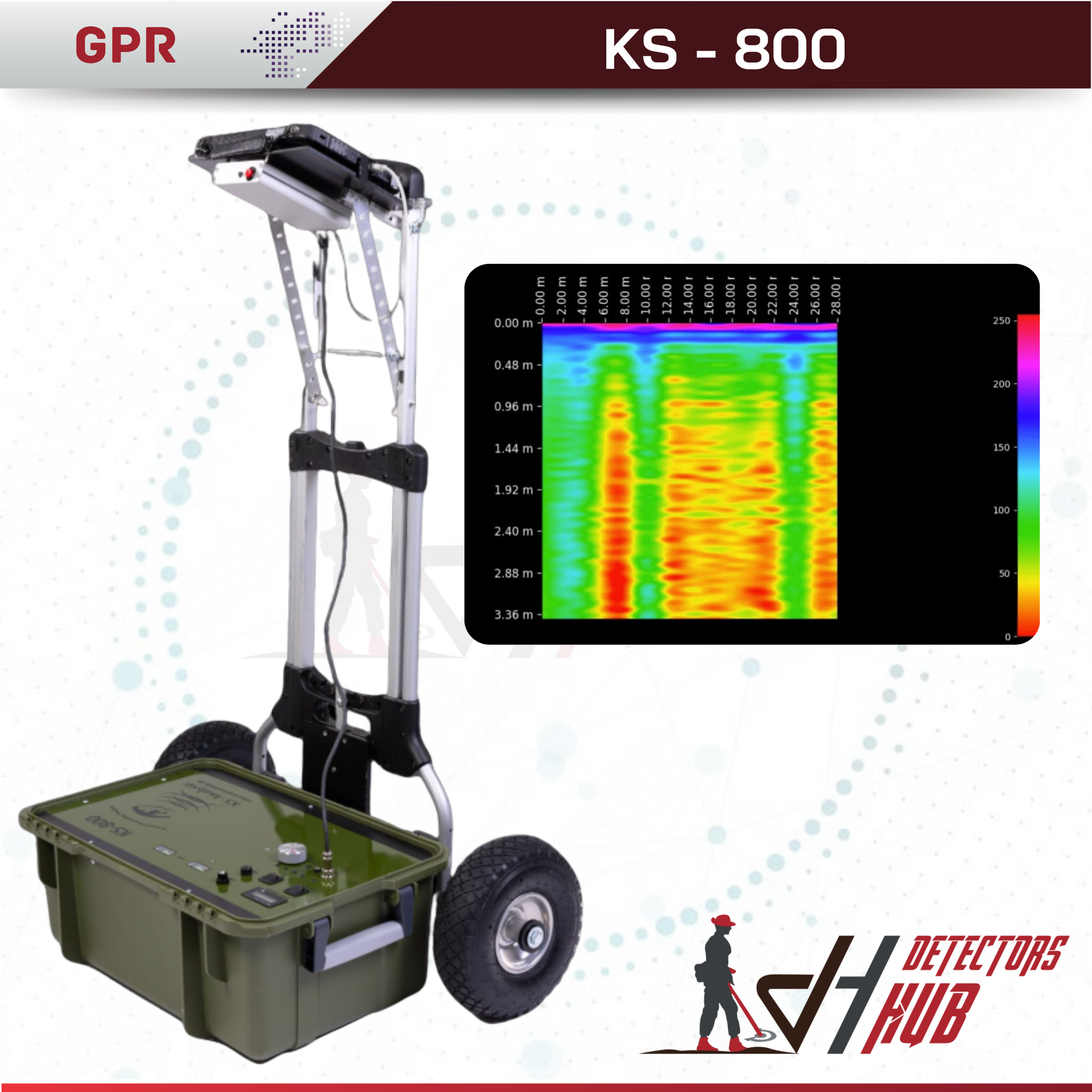

KS-800 Professional Grounding Radar

• New software is in the KS 800. The following benefits were built into the new software:
• Continuous measurement is possible without returning to the starting location
• In the software, the recording data are automatically saved; you don't need to do anything.
• click the record button
• The measurement can be saved and is automatically presented in the measurement image.

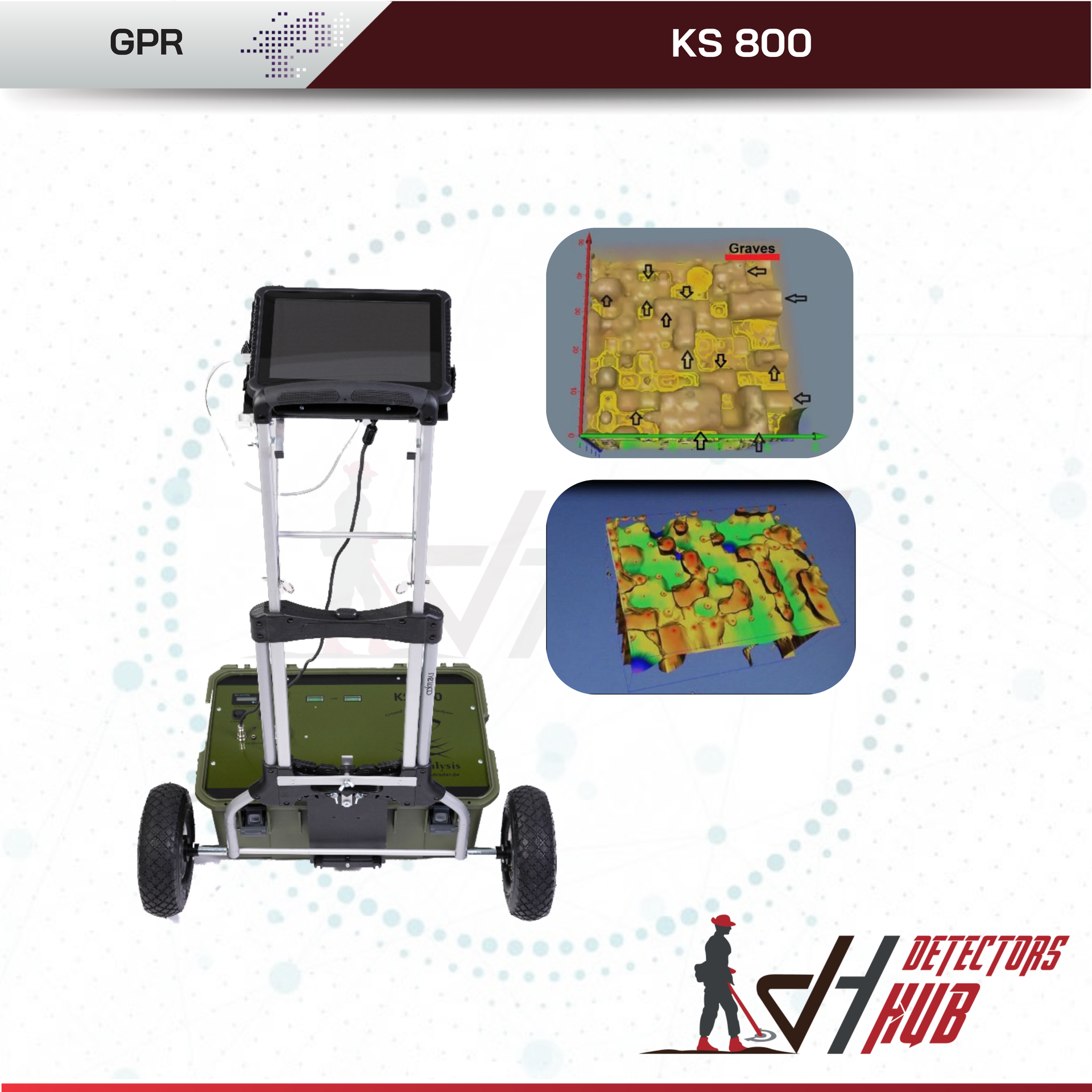

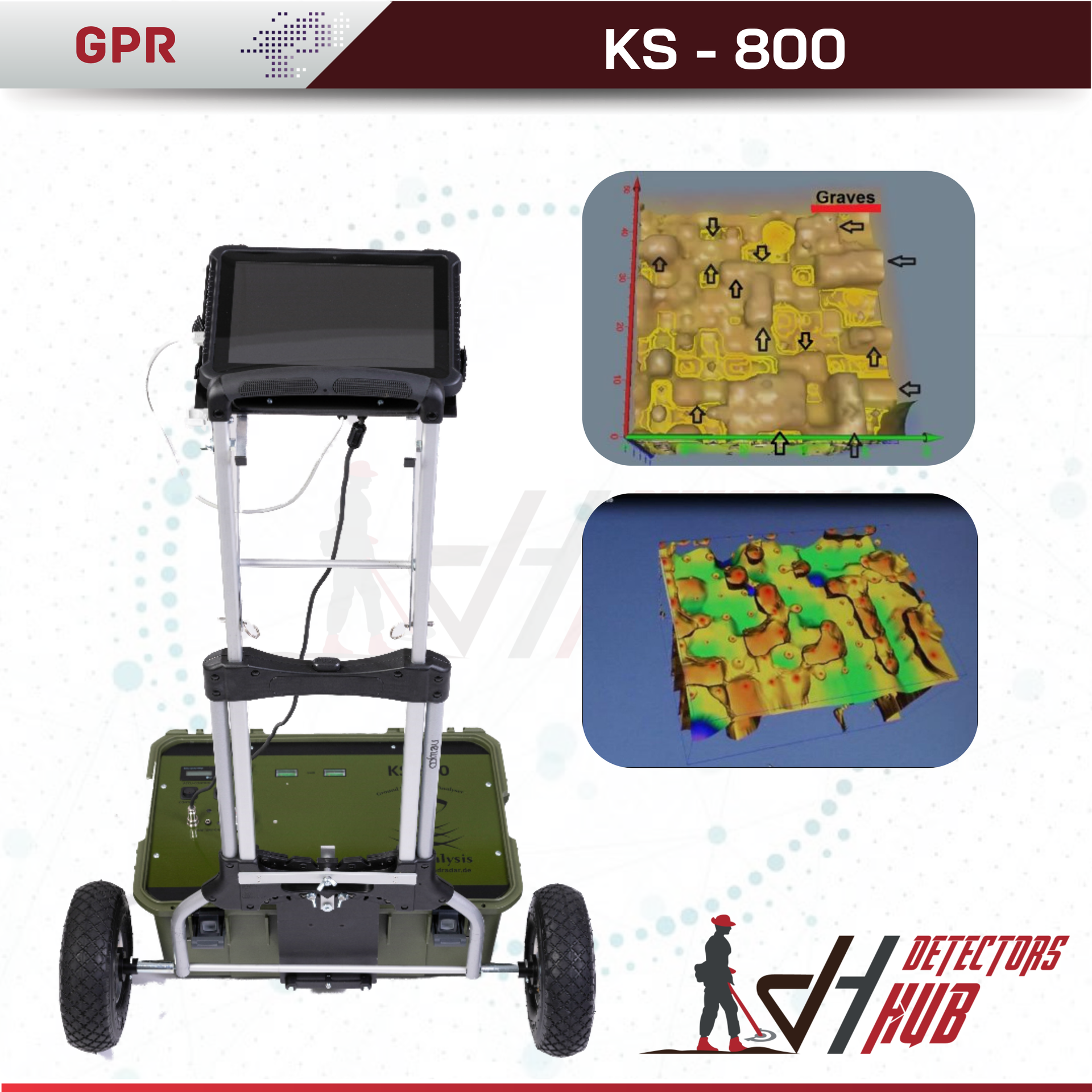

• The 3D image is immediately viewable after the automatic conversion to the 3D display.
• The measurement can be loaded into Voxler and saved to an external storage device. Automatic updates can be deployed through the Internet.
• It is advantageous to surface search for tiny materials.
• Low-lying materials are best presented

THE GROUND RADAR KS800
CONSISTS OF:

• Antenna: T/R
• Depth performance: 30-60m (limestone)
• Battery: built-in lithium polymer 15Ah
• Mobile with trolley
• Compact design Handling on the measuring field by 1 person
• Shipping: 2 boxes
• Compact design
• Foldable (transport)
• Waterproof and shockproof touchpad
• 2D and 3D software touchpad
• USB socket for exporting to USB
• Improved data processing
• Resolution 1-6m
• Max. sampling rate 200 ms/s
• Buffer memory 16KS
• Rise time 14 ns
• Vertical resolution 8 bit
• Timebase ranger 10ns/1s
• Timebase accuracy +/- 100ppm

With this FMCW ground radar, it is not necessary to exchange the antenna for different depth ranges!

Dimensions:

Height: 26cm without chassis / 1.25cm with chassis
Width: 43cm
Length: 63cm
