Compact: Easy to use and easy to carry Treasure Detector for small-budget users – ideal for first successes.

DESCRIPTION

Fusion Light is an easy-to-use floor scanner for treasure hunters seeking buried objects, cavities like graves, tunnels and underground caches for the search of treasure. The Treasure Detector is a special version that combines Rover UC's preferred application qualities with flexibility and user-friendliness.

Fusion Light 3D Ground Scan operating modes enable treasure hunters to detect gold trusts and underground abnormalities and to immediately display scanner data on their smartphones with the Android App.

Operating the OKM Fusion metal detector

The advanced professional plus version can be used in a vertical and horizontal orientation and supports the following operating modes:

Ground Scan

Conduct a graphical 3D measurement forThe Fusion Light is able to locate iron metals such as military and iron boxes filled with gold and silver coins, valuables and precious objects, thanks to its integrated magnetometer.

Encounter a new dimension in hunting for treasures

Fusion Light, a compact trust detector for beginners and truck hunters with a small budget, convinces with the simplicity of handling and ease of transport. detailed analysis on a computer.

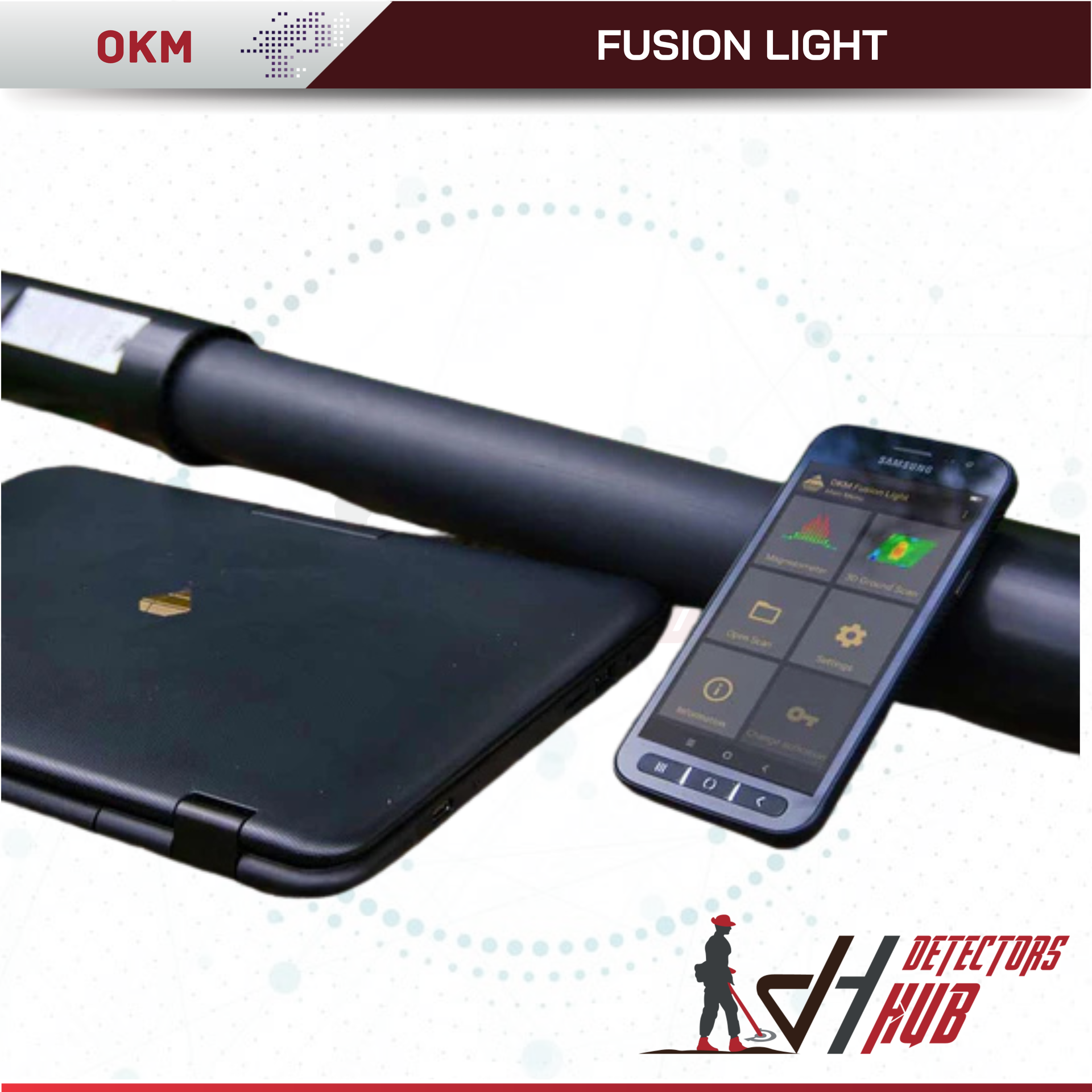

The small delivery range has everything: Fusion light consists of a compact control unit with integrated sensing systems and is controlled through the Android App, which is lightweights between metal detectors and ground scanners. For successful treasure hunts, the operating modes Magnetometer and 3D Ground Scan are essential. The measurement results are viewed directly on the smartphone (or tablet) with the Android App and can be analyzed on the Windows notebook using the Visualizer 3D software.

3D ground scan anomalies are detected and analyzed

3D Ground Scan helps to trace underground cavities and objects in treasure hunters, military researchers, and historians. Potential finds and findings can be viewed via the OKM Fusion Light App on Android's smartphone and saved for additional analysis. Through transferring scan data to the notebook PC and analyzing it with the 3D visualizer, treasure hunters are getting a more accurate 3d image.

3D display of measurement data with Visualizer 3D OKM software

The 3D Ground Scan measurement data can be displayed in a detailed 3D graph on the notebook thanks to the Visualizer 3D software. Once the stored scan data is successfully transferred to the PC, the user can determine even more precisely the location, size, and depth of the potential treasures.

Detecting objects with the Magnetometer

The magnetic field of the earth can be measured with the scan function Magnetometer. Magnetic field abnormalities indicate possible finds. This allows the detection of long-buried artifacts such as treasure chests, old munitions and other iron objects. In order to clear the scan area of smaller objects close to the surface, experienced treasure hunters use the magnetometer before the ground scan.

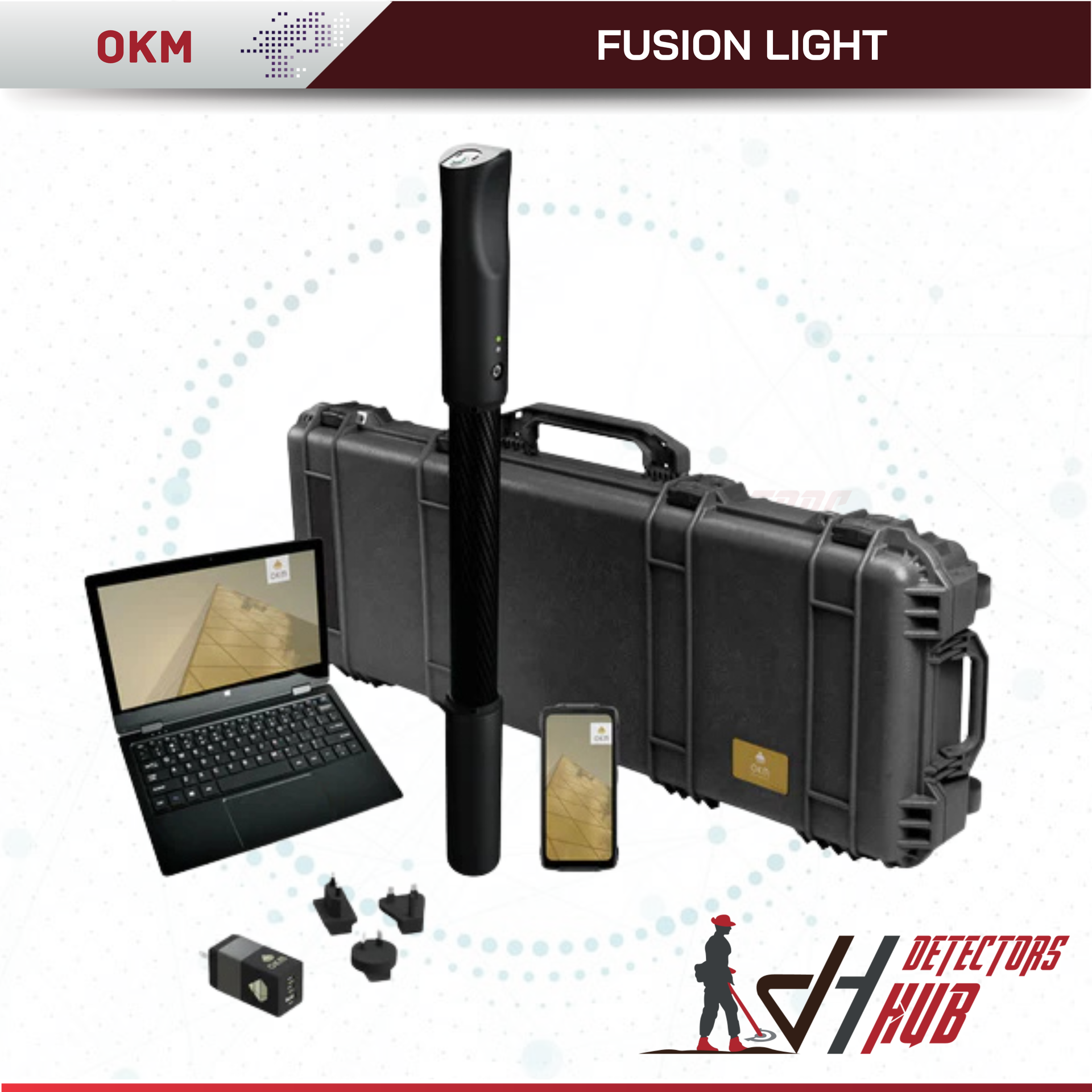

DELIVERY SCOPE

1x        Control unit

1x        Charger for control unit incl. travel adapter

1x        Smartphone with pre-installed Android App

1x        Windows notebook with pre-installed Software Visualizer 3D Studio Standard                Edition (incl. 1 Licence)

1x        Shock-resistant and waterproof Peli Case

1x        Quick Start Guide

Specifications

Control unit

Dimensions (H x W x D): 800 x 65 x 65 mm

Weight: approx. 700 g

Input voltage (max.): 19 V DC, 3.16 A

Processor / Main CPU: Cortex M3, 32 MHz

Processor / Slave CPU: Cortex M0, 24 MHz

Sample rate: 1024 values / second

Measurement resolution: 16 bit

Operating temperature: –10°C – 60°C

Storage temperature: –20°C – 70°C

Waterproof: No

Sensor technology / Coil technology: SCMI-15-D

Operating time: approx. 12 h

Air humidity: 5% – 75%

Protection Type: IP40

Charging Time: approx. 3h

Data transmission

Technology: Bluetooth

Frequency: 2.4 – 2.4835 GHz

Maximum Transfer Rate: 1 Mbps

Receiving Sensitivity: –85 dBm

Maximum Range: approx. 10 m

Computer minimum requirements

CD-ROM drive: minimum 4x

Interface (Data transmission): USB

Free disk space: minimum 50 MB

Working memory (RAM): minimum 256 MB

Graphic card: minimum 128 MB, OpenGL-compatible

Processor: minimum 1.2 GHz

Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.
