Compact: Detector for scans in vertical and horizontal orientation - supporting graphical 3D measurements, acoustic magnetic field measurements and instant live images

Measuring Depth: customers found objects to 21 m (69 ft) deep

Use cases: treasure hunting, cavity detection

Operating modes: Ground Scan, Live Sound (Magnetometer), Live Stream

Detectable objects: treasure chests, cavities, tunnels

 FEATURES

• 3D Visualization
• 3D Ground Scan
• Color display / Touchscreen
• GST / EMSR
• Height adjustment
• Inductive search coil
• Live Sound
• Live Stream
• Multilingual operation
• Rechargeable high-capacity battery
• Wireless technology

DESCRIPTION

The metal detector and 3D ground scanner Fusion is a redesigned and improved version of the Future 2018 Anniversary Edition. It has been designed for starters in the field of 3D measurements and offers easy operation as well as advanced scanning features.

The 3D ground scanner Fusion supports treasure hunters, gold seekers, adventurers and archaeologists to discover lost treasures, buried artifacts, hidden places and other historical items.

The version Fusion Professional is perfect for beginners with small budgets.

DESCRIPTION

The metal detector and 3D ground scanner Fusion supports treasure hunters, gold seekers, adventurers and archaeologists to discover lost treasures, buried artifacts, hidden places and other historical items.

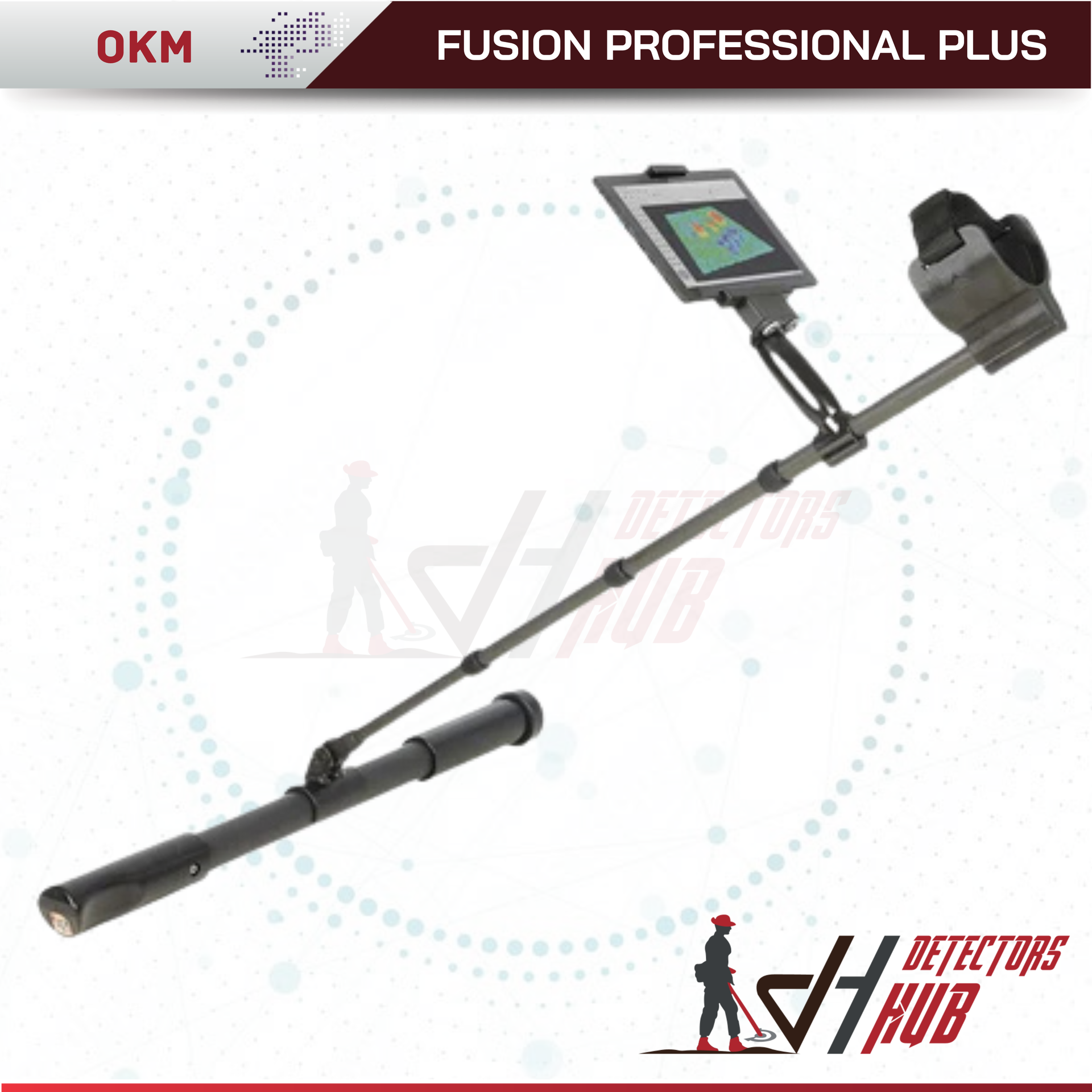

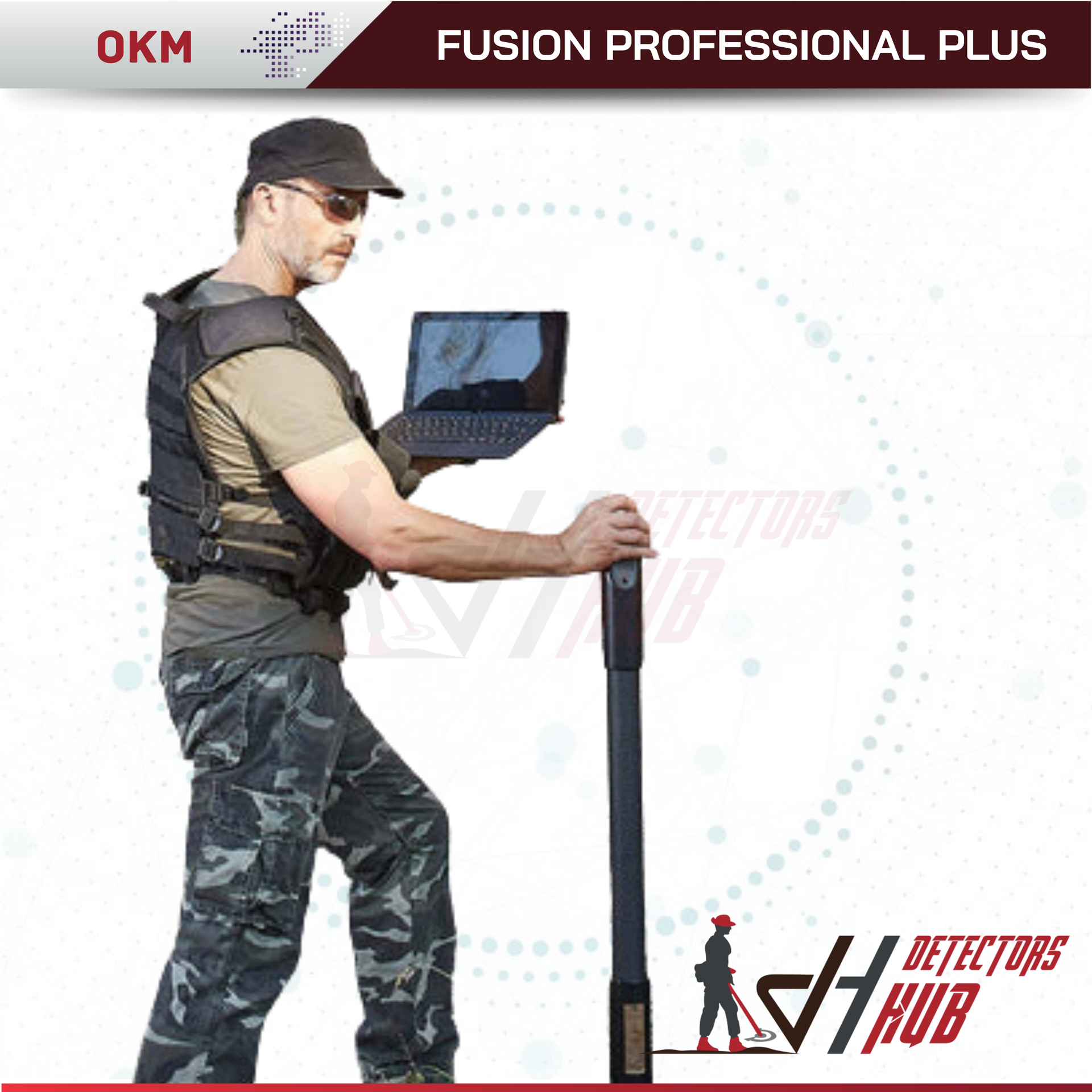

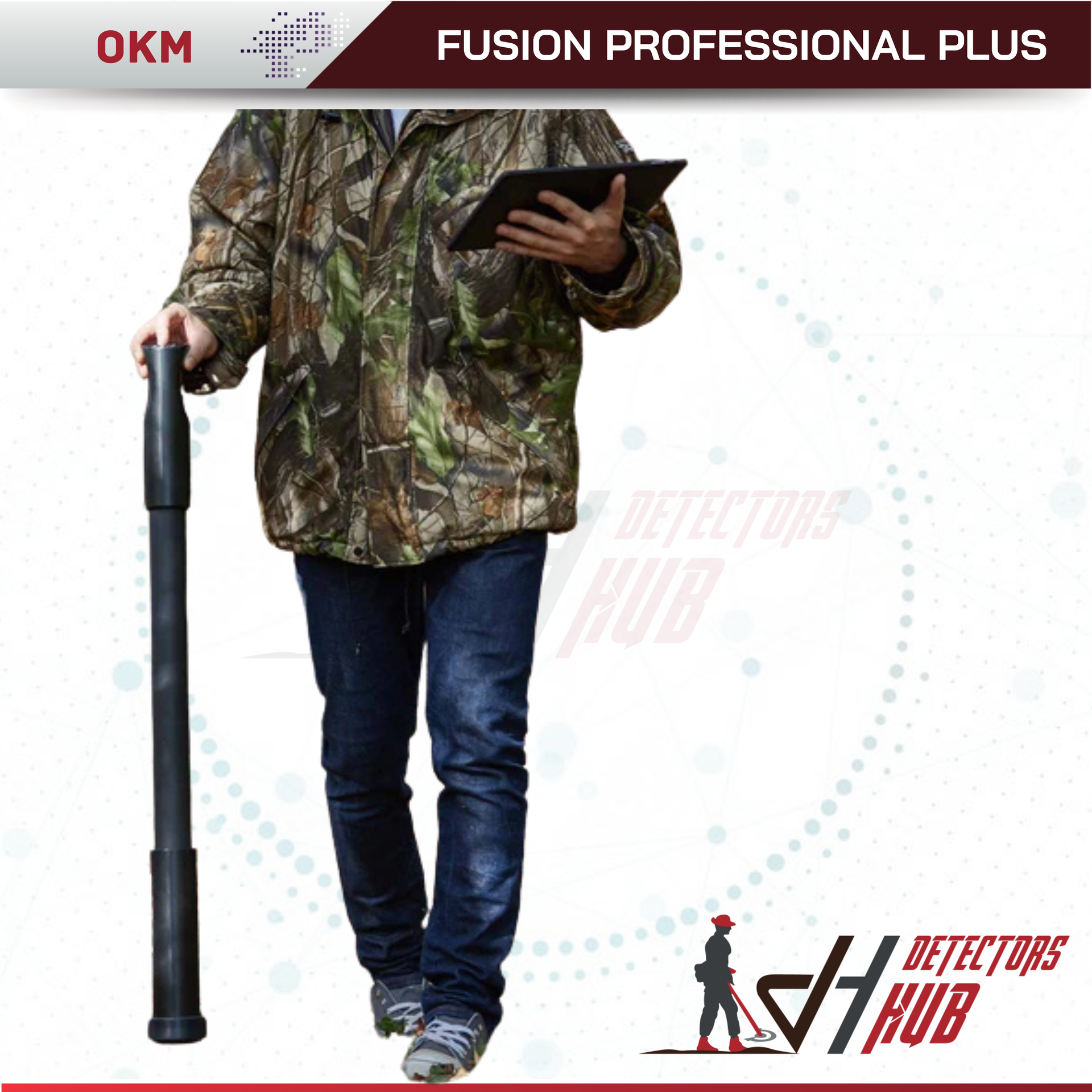

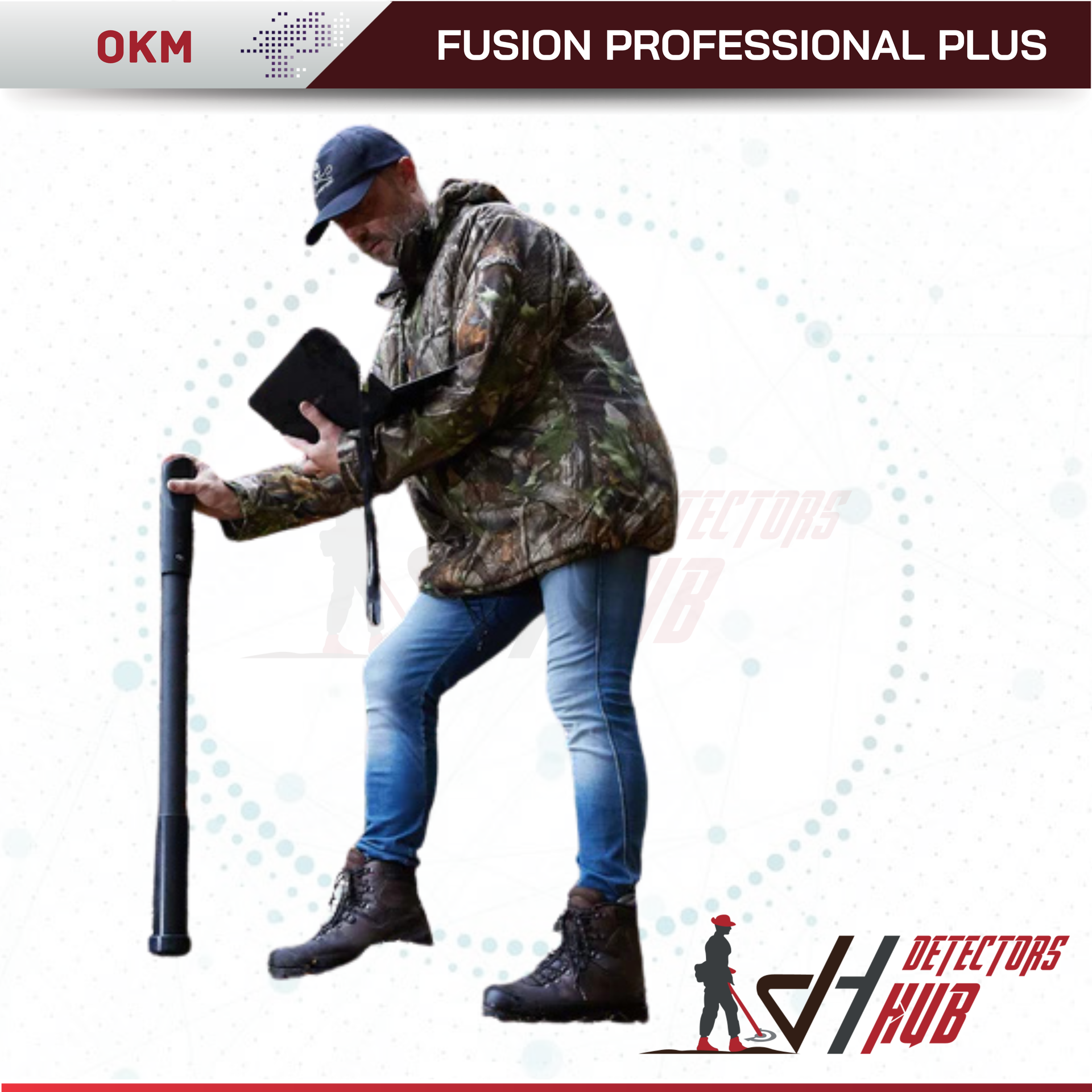

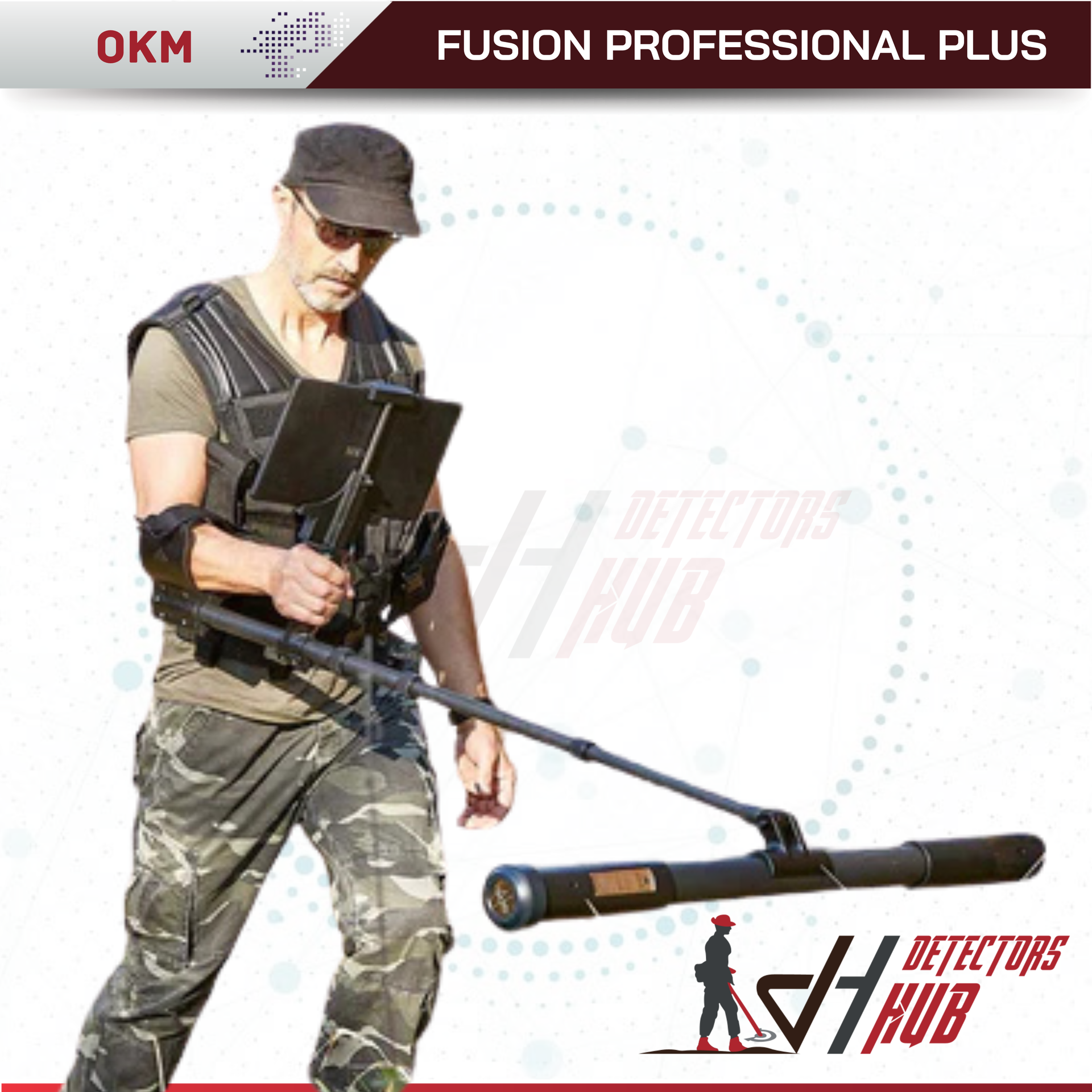

The advanced version Professional Plus can be used in a vertical and horizontal orientation and supports graphical 3D measurements, acoustic magnetic field measurements, and instant live images.

Operating the OKM Fusion metal detector

The advanced professional plus version can be used in a vertical and horizontal orientation and supports the following operating modes:

Ground Scan

Conduct a graphical 3D measurement for detailed analysis on a computer.

Live Sound

Process an acoustical magnetic field measurement to detect ferrous metals.

Live Scan (Multi-Sensor, Ultrasound)

Process an instant live image while walking the scan field.

Utilizing the SRIS search coil to locate shallow metals

One of the new detection features is the SRIS search coil that can be used to locate short-range metallic objects. This coil can be activated individually by the operator while setting up the operating modes Live Sound, Ground Scan and Live Scan (Ultrasound).

The SRIS search coil can be very useful to pinpoint targets while digging. It is easy to detect the general position of a buried object with the OKM 3D ground scanner and metal detector OKM Fusion.

When you start digging it can be really hard to exactly match the correct spots of hidden items afterward. By checking the excavated material with an activated SRIS search coil you won’t miss any small object like:

wedding bands and engagement rings

earrings, brooches, bracelets, and necklace

coins, buttons, badges, and pins

3D Visualization of underground treasures

While scanning an unknown area and recording the measure values, the Visualizer 3D Software can immediately analyze and visualize this information to display a color-coded 3D graphic of hidden objects and structures. Thus, you will literally “see” all buried treasures, gold objects, archaeological artifacts and any other hidden objects before digging.

Additionally, you can determine the size, position, and depth of your detected items. So you know where to dig and how deep to dig to find your objects of interest.

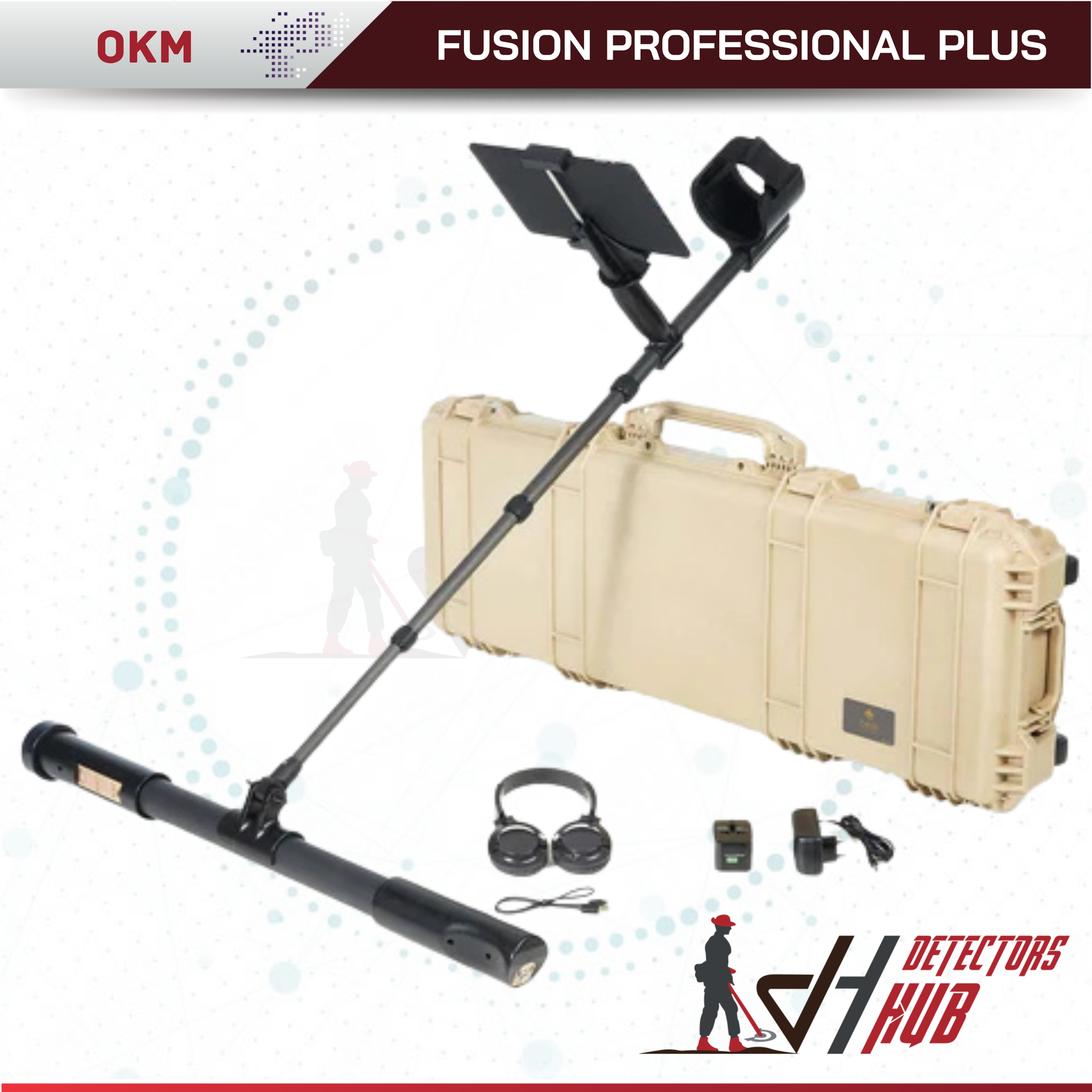

DELIVERY SCOPE

1x        Control unit

1x        Telescopic rod assembly

1x        Windows Tablet PC

1x        Software Visualizer 3D Studio Professional Edition

1x        Tablet PC mount

1x        Waterproof and shock resistant Pelican case

1x        Bluetooth headphones

1x        USB Bluetooth dongle

1x        Charger for control unit

1x        Travel adapter

1x        Quick Start Guide

Specifications

Control unit

Dimensions (H x W x D): 950 mm, 65 / 80 mm

Weight: approx. 1 kg

Processor / Main CPU: Cortex M3, 32 MHz

Processor / Slave CPU: Cortex M0, 24 MHz

Sample rate: 1024 values / second

Measurement resolution: 16 bit

Operating temperature: –10°C – 60°C

Storage temperature: –20°C – 70°C

Audio: Bluetooth Headphones

Waterproof: No

Sensor technology / Coil technology: SCMI-15-D / SRIS-18K

Operating time: approx. 3 hours (delivered power supply, full charged battery, 25°C)

Air humidity: 5% – 75%

Protection Type: IP40

Input (for Charger): 19 V DC / 3.16 A

Data transmission

Technology: Bluetooth

Frequency: 2.4 – 2.4835 GHz

Maximum Transfer Rate: 1 Mbps

Receiving Sensitivity: –85 dBm

Maximum Range: approx. 10 m

Computer minimum requirements

CD-ROM drive: minimum 4x

Interface (Data transmission): USB

Free disk space: minimum 50 MB

Working memory (RAM): minimum 256 MB

Graphic card: minimum 128 MB, OpenGL-compatible

Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.
